Resolvers – Robust sensors for accurate performance in tough environments
-55 °C to +155°C
Temperature Capability
40 000 rpm
Max operating speed
3
Types of resolvers offered
Shock & vibration resistance sensors for demanding environments
Precision starts with reliability. At POWER&D we deliver durable analog angle sensors engineered for demanding environments, from industrial robots to construction machinery. Our compact and high-performance designs ensure accurate position feedback.
Three resolver technologies
We offer three types of resolvers in various configurations, designed for precision, reliability and performance across industrial applications.
01

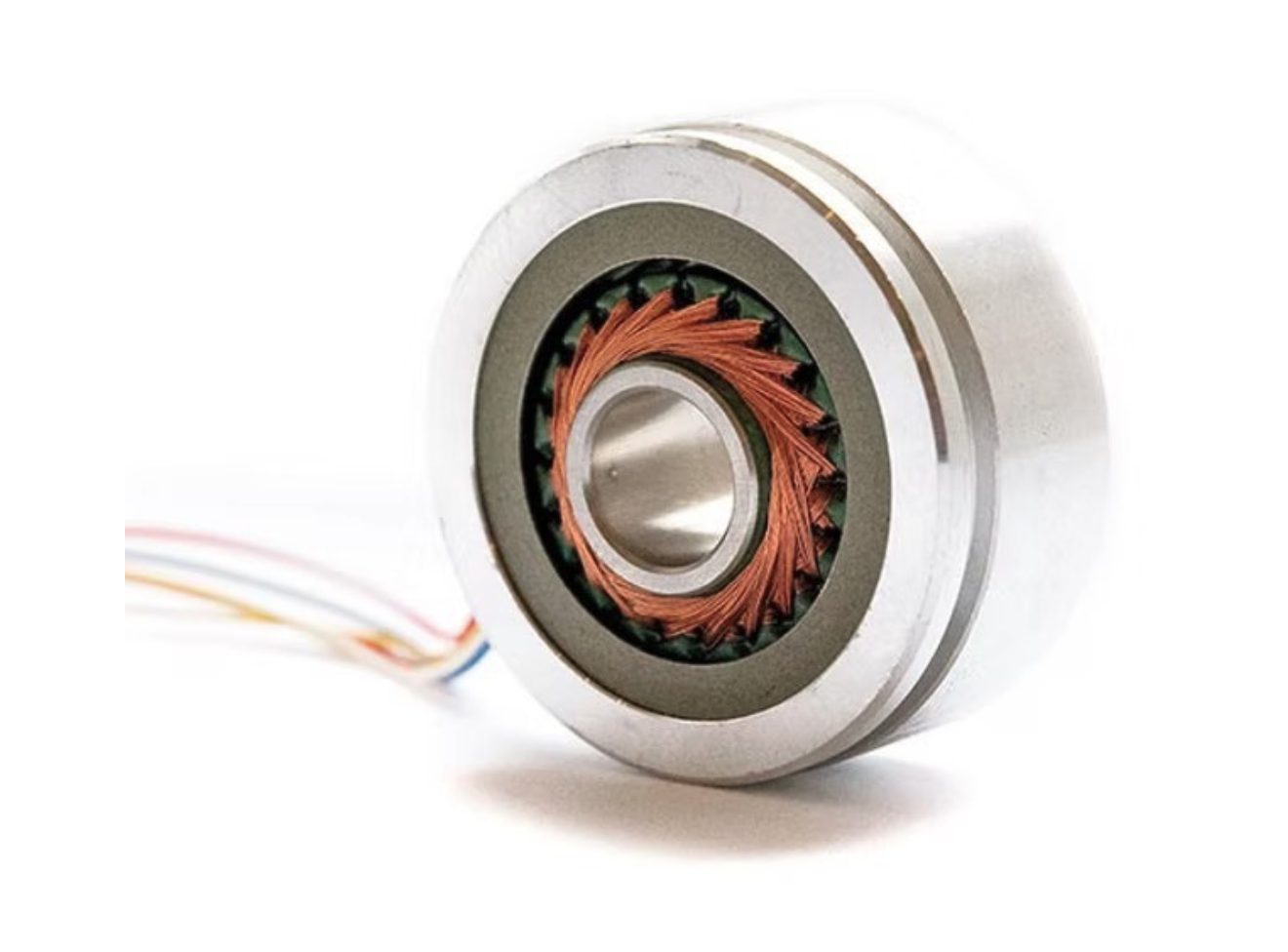

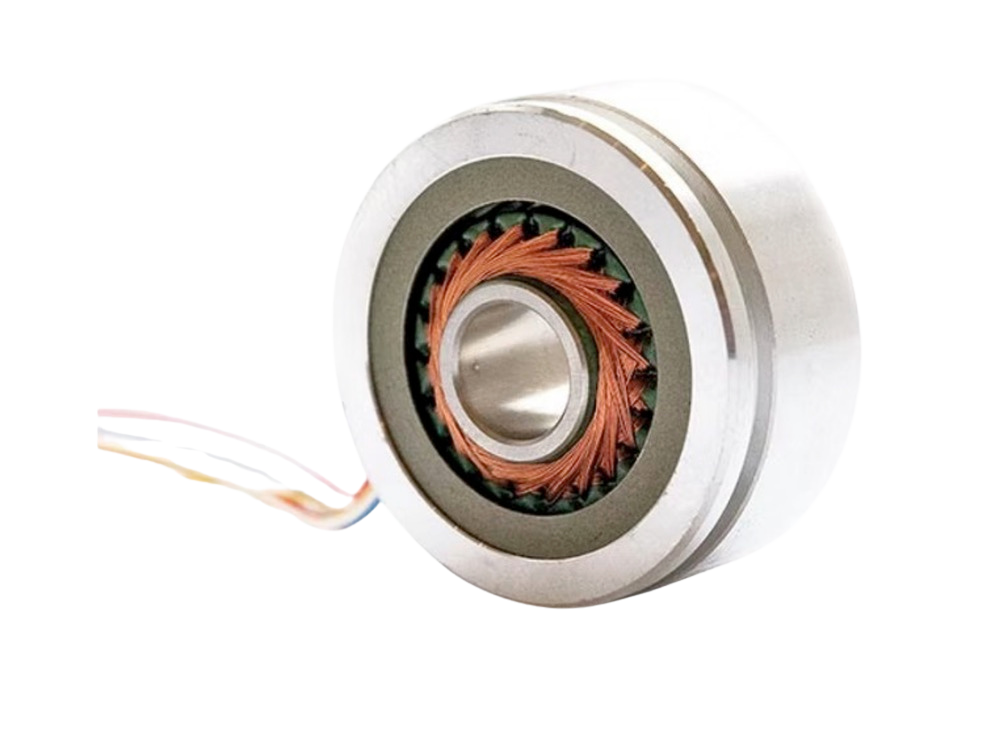

SmartSyn
The SmartSyn is a brushless analog angle sensor featuring copper windings for high accuracy and reliable performance, even in harsh and demanding environments. Its compact and robust design enables flexible integration across a wide range of applications.
Key features
−55°C to +155°C
Max Operating Speed: 40,000 rpm
Vibration: 196 m/sv (20 G) at 10 Hz
Shock: 981 m/s2 (100 G) for 6 ms
Noise resistance
Built-in integration possibilites
Complete units with hollow or solid shaft
Offered with various pole counts to match different motor design
Typical applications
Factory automation
Automotive industry
Construction machinery
Marine applications
Nuclear industry
02

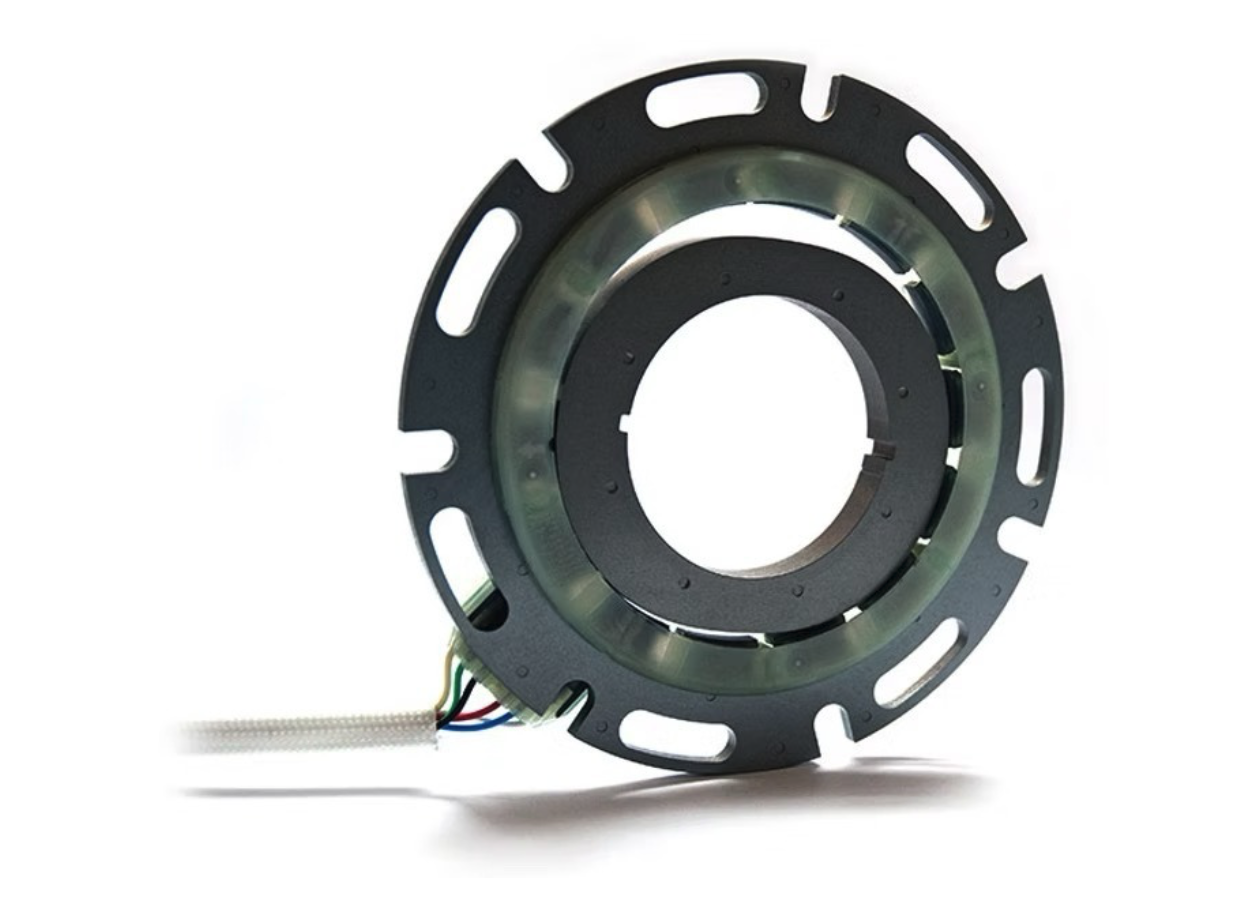

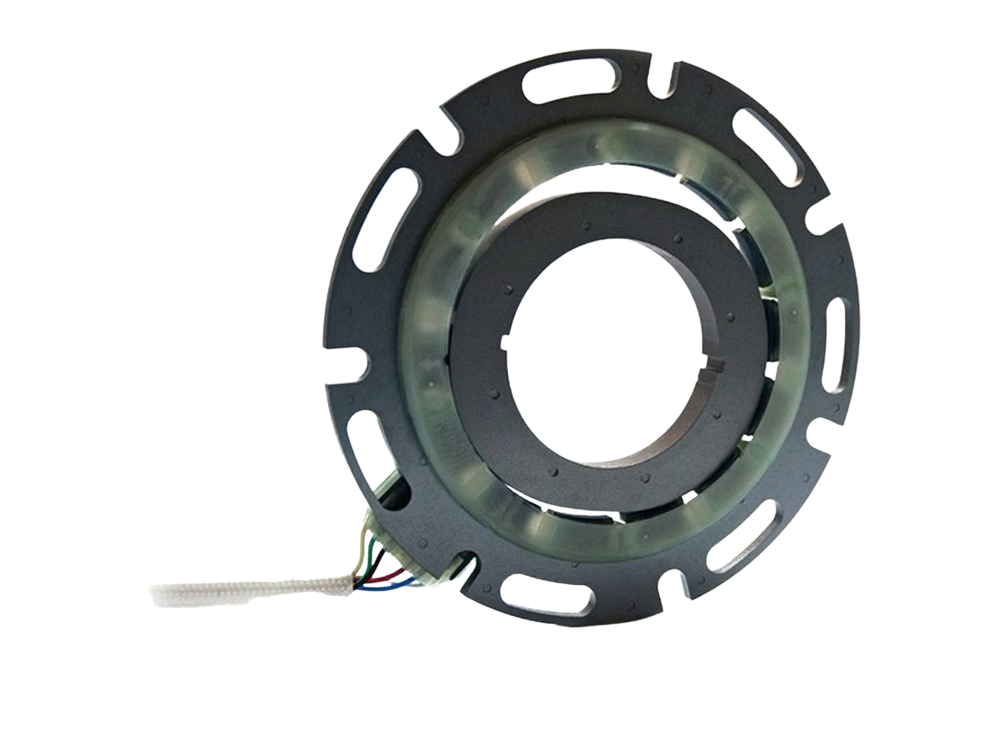

SinglSyn
The SinglSyn is an ultra-thin analog angle sensor designed for applications where installation space is limited. With no copper windings in the rotor, it provides greater design flexibility and is particularly well suited for solutions with large shaft dimensions.
Key features
-40 to ＋150℃
Max Operating Speed: 20,000 rpm
Vibration: 196 m/sec2 (20 G)
Shock: 980 m/sec2 (100 G)
Humidity: 90 % RH over
Stator outer diameter:Ø59.5 mm to Ø167 mm
Rotor inner diameter: Ø9.52 mm to Ø100 mm
Pole configurations: from 2X up to 6X
Typical applications
Traction drives for various vehicles
Forestry machinery
Mining machinery
03

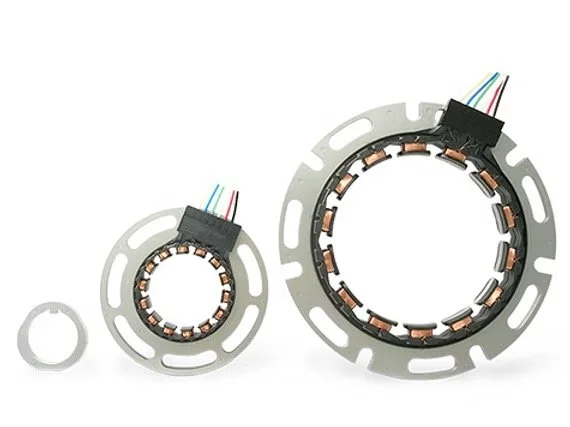

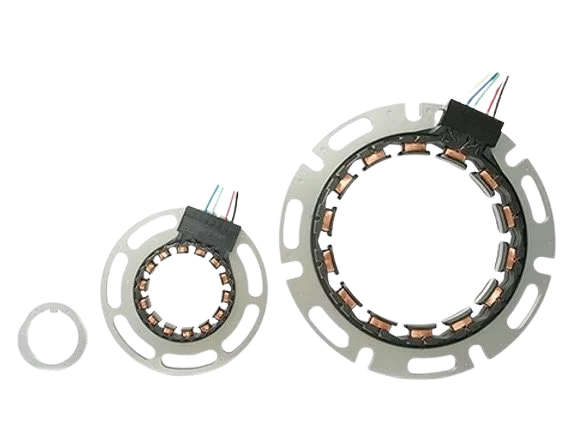

DoublSyn
The DoublSyn is a thin and high-precision angle sensor featuring built-in redundancy for increased reliability. With no windings in the rotor and an additional copper winding in the stator, it provides dependable performance while maintaining a compact design.
Key features
-40 to ＋150℃
Max Operating Speed : 30,000 rpm
4 mm ultra-thin design
4X resolver pole configuration
High resistance to electrical noise
Stator outer diameter: Ø52 mm to Ø101 mm
Rotor outer diameter: Ø25 mm to Ø45 mm
Typical applications
Factory automation
Automotive industry
Construction machinery
APPLICATIONS
Where are our Resolvers used?
Marine applications
Off highway vehicles
Industrial automation
Factory Automation
Construction Machinery
Mining machinery
Requirements review
Submit a request with your specific resolver requirements, from application type to performance, environment and mechanical specifications.
Analysis
We review your specific requirements such as operating environment, speed range, interface and mechanical constraints, to identify the optimal resolvers.
Prototype development & validation
A customized prototype is designed and tested to meet your requirements. We ensure the right solutions from the start, prioritizing both quality and cost-efficiency.
Series production
When the design is approved we move into full-scale production, ensuring consistent quality, reliable delivery and support throughout the product lifecycle.
DESIGN FOUNDATION
Tamagawa Design
We have a long-term partnership with Tamagawa Seiki, Japan, ensuring quality and reliability of our products. All products are designed with a strong focus on performance and durability.
Tamagawa Seiki is a global supplier of advanced sensor technology, servo components, and motion control systems, with more than 88 years of engineering expertise. By combining precision angle sensing with advanced drive technology, Tamagawa delivers innovative solutions for industries ranging from industrial automation and robotics to aerospace and deep-sea applications, driven by close customer collaboration and continuous innovation.
Start with a
30 minute technical brief
Tell us about your application: operating environment, speed range, accuracy requirements, interface and mechanical constraints. Whatever your requirements, we will help you select the right solution, integration challenges early and define a clear process from concept to production.
